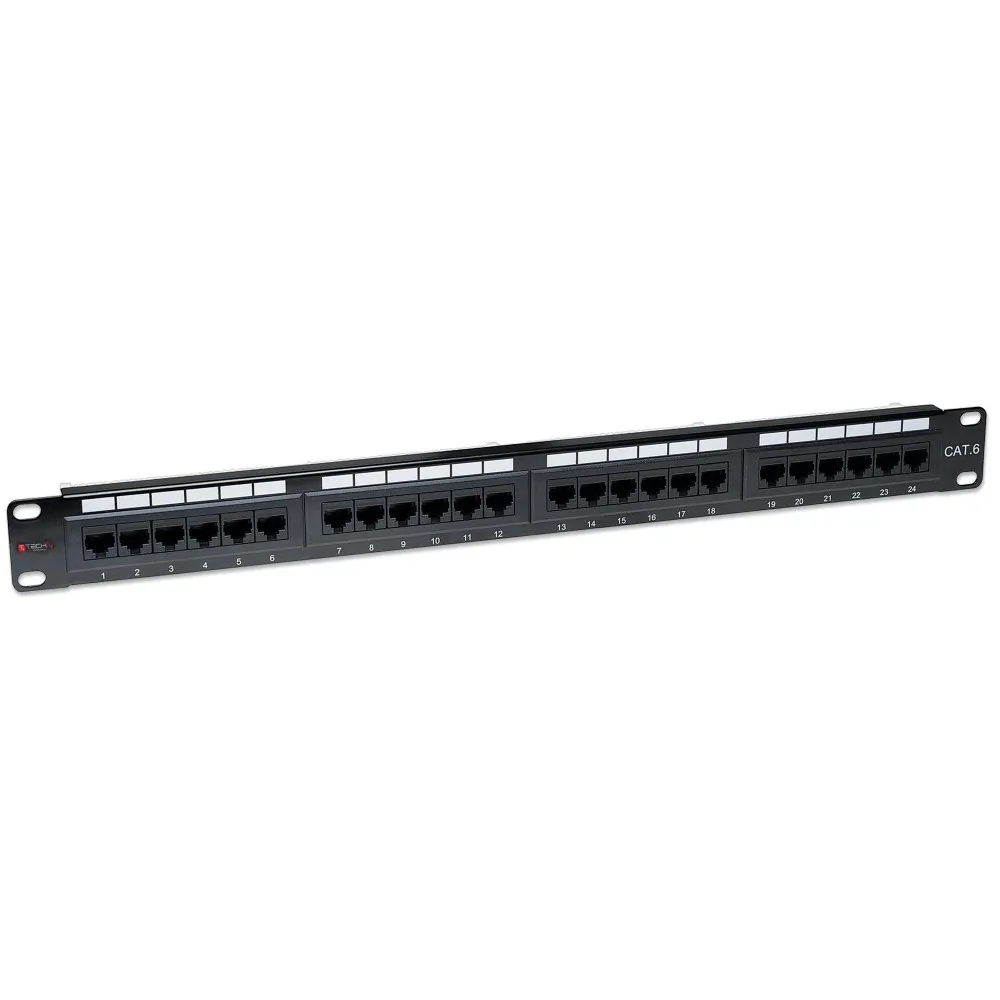

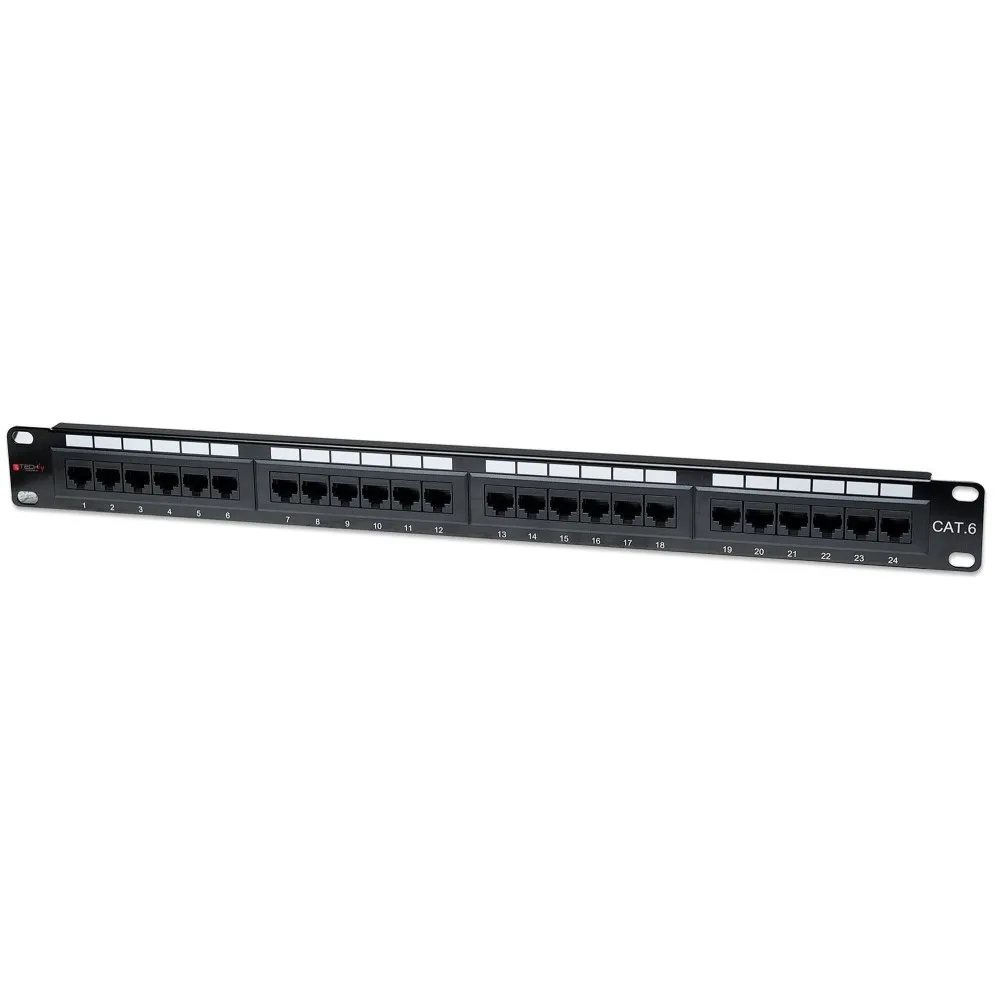

Techly 24 x RJ45 Cat.6
Techly Patch Panel UTP 24 Ports RJ45 Cat.6 I-PP 24-RU-C6T, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, 10/100/1000Base-T(X), Fast Ethernet, Gigabit Ethernet, 1000 Mbit/s, RJ-45, Gold
Cable shielding: U/UTP (UTP)Operating temperature (T-T): -40 - 68 °CMaximum data transfer rate: 1000 Mbit/sPorts quantity: 24Height: 43 mmConnector(s): RJ-45
Specifikacije
- Cable shielding
- U/UTP (UTP)
- Operating temperature (T-T)
- -40 - 68 °C
- Maximum data transfer rate
- 1000 Mbit/s
- Ports quantity
- 24
- Height
- 43 mm
Opis
- Patch Panel UTP 24 ports RJ45 cat. 6;
- solid and resistant terminations for copper cabling featuring connectors with gold contacts from a minimum of 3 mm 50 micro-inches;
- Compatible with both 110 and Krone inserter;
- Supports rigid and flexible cable 22 to 26 AWG;
- For use with unshielded twisted-pair network cable (UTP) Cat6;
- The Cat6 performance is compliant with ANSI / TIA / EIA 568 B.2-1;
- Ideal for Ethernet applications, Fast Ethernet and Gigabit Ethernet;
- Connects RJ-45 ports to the network;
- Meets 19 "rackmount.
Standard
- IEEE 802.3 (10Base-T Ethernet);
- IEEE 802.3u (100Base-TX Fast Ethernet);
- IEEE 802.3ab (1000Base-T Gigabit Ethernet).
Certifications
- RoHS;
- WEEE.
Physical characteristics
- Dimensions: 482 mm (L) x 43 mm (H) x 48 mm (D);
- Horizontal distance between left and right mounting holes: 465 mm;
- The vertical distance between the mounting holes in the top and bottom: 31.8 mm;
- Operating temperature: -40 - 68 ° C.
Package Contents
- Patch Panel;
- 4 mounting screws;
- Quick Install Guide.
