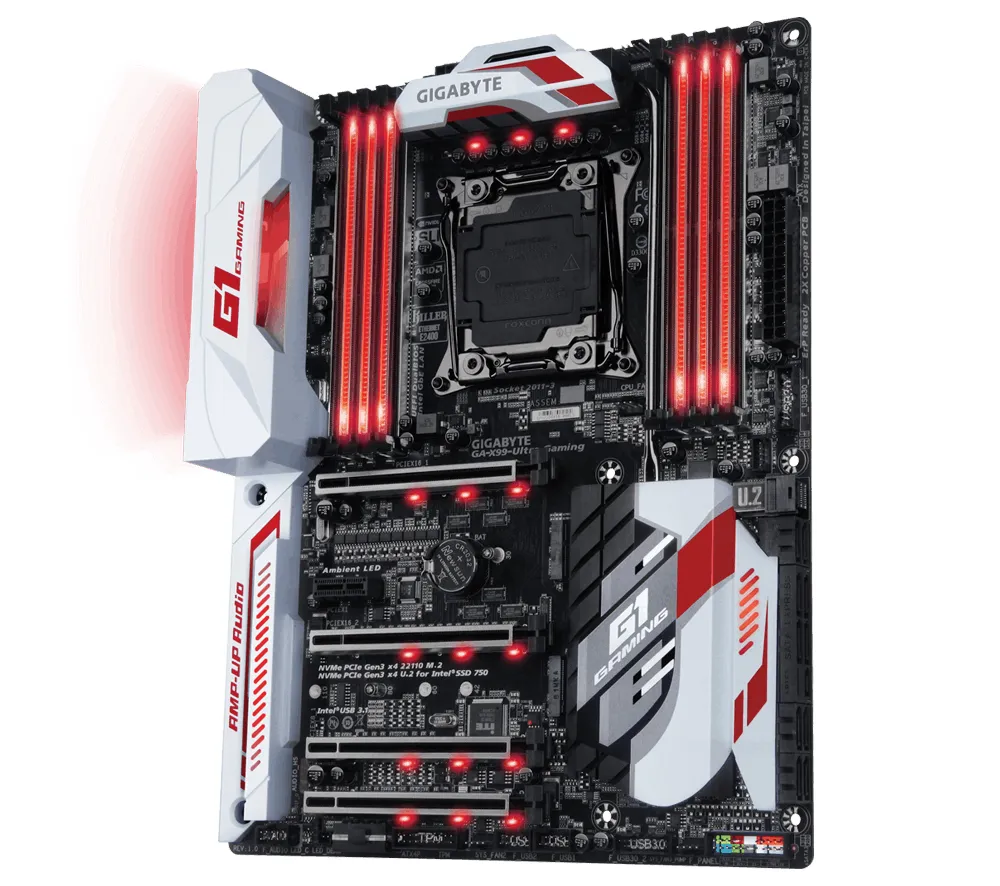

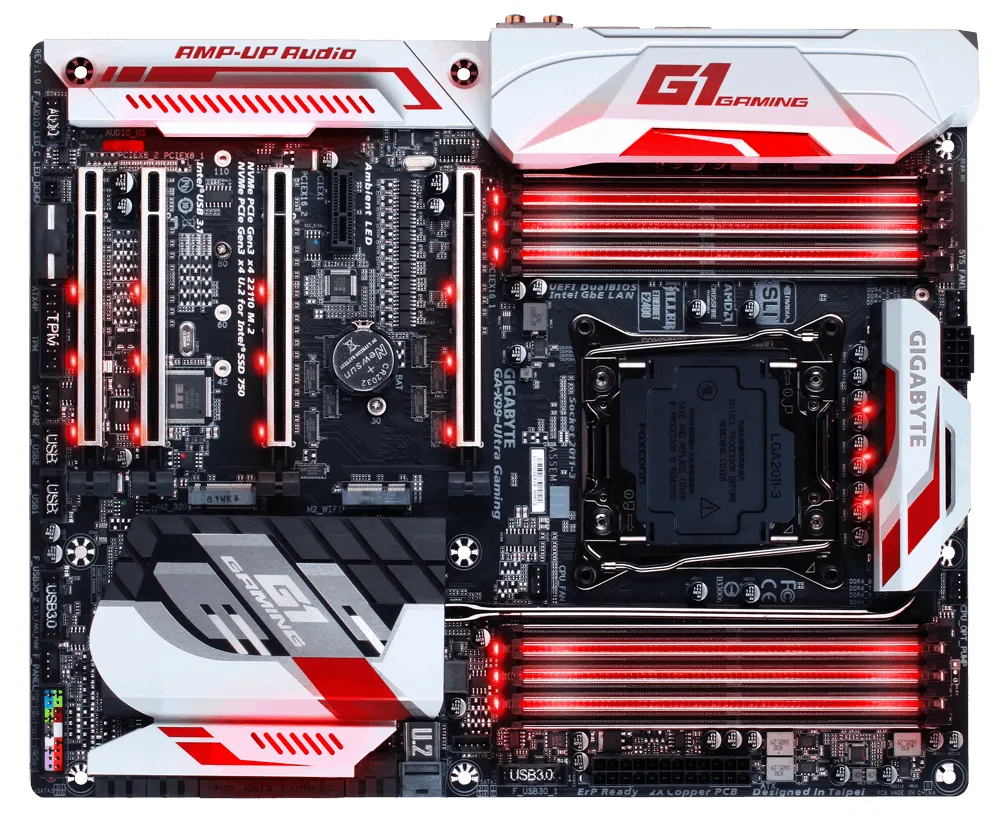

GIGABYTE GA-X99-Ultra Gaming-EK (rev. 1.0)

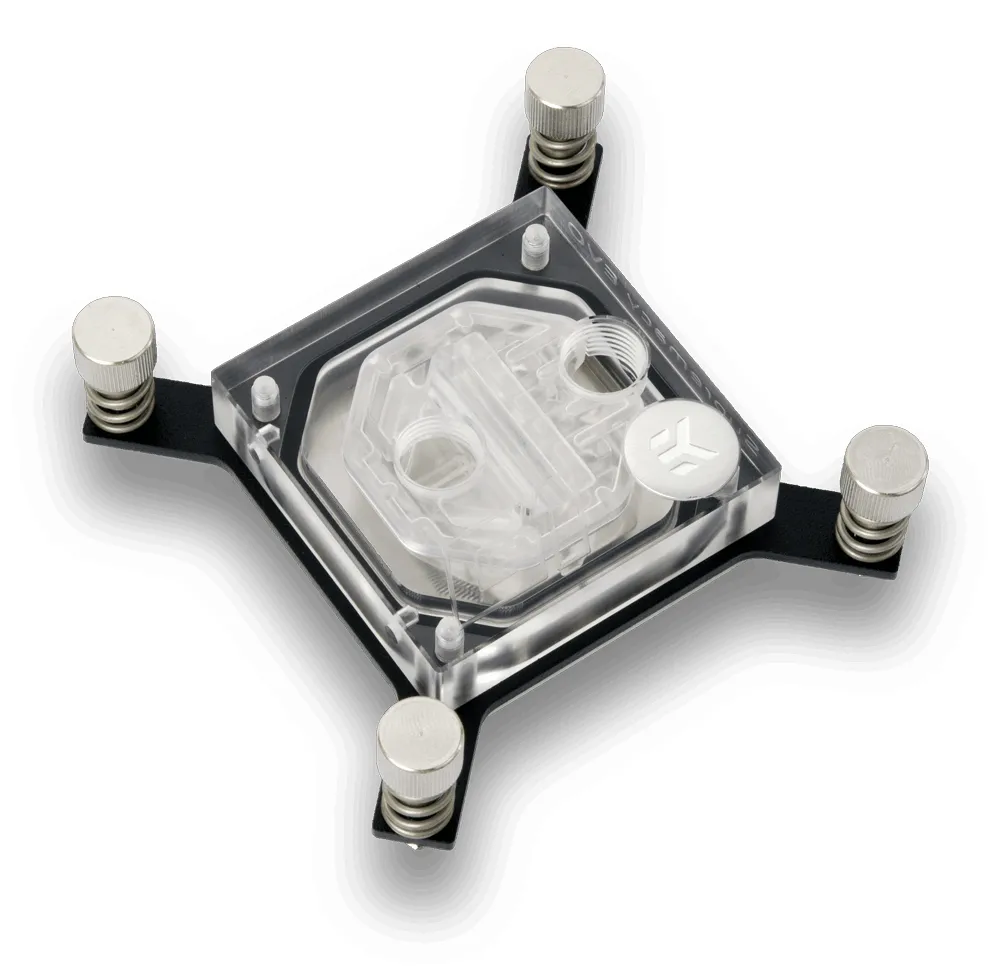

EK-Supremacy EVO X99 is the extreme performance CPU water block, developed specifically for Intel® X99 / LGA-2011-3 platform and comes with pre-assembled, error-preventing mounting mechanism. EK Water Blocks has designed this water block for gamers and performance seeking enthusiasts. With its unmatched thermal performance, very high-flow design and its modularity, EK-Supremacy EVO X99 is the result of numerous CFD analysis and rigorous testing at highest possible overclocks.

The top is made from CNC machined acrylic glass while the insert is made from injection moulded transparent MABS polymer. Plexi top has two slots for easy installation of 3mm LED diodes (not enclosed). Specifically designed and carefully machined copper base (sometimes referred to as ‘cold plate’) is made from purest copper available on the market and is further polished to absolute mirror finish. This alone greatly improves the cooling performance of EK-Supremacy EVO X99.

EK-TIM Ectotherm, best in-class thermal compound (electrically non-conductive) is enclosed.

Ambient Surround LED
Set the Color that Matches Your Style
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned Ambient LED application, the user has complete control over the LEDs which surround the motherboard.

Light Up Your Case to Match your Motherboard
With an onboard Pin Header for aftermarket LED Strips, users now have the ability to sync the lighting in their computer case with the lighting on their motherboard. By using the Ambient LED Application, included in GIGABYTE APP Center, users are also able to specify the lighting modes available and ensure that everything is illuminating their system in harmony.

Dual Hybrid Fan Headers
Many of today’s modern computers feature water cooling to ensure that the CPU or graphics cards stay cool and quiet while they are put under heavy load. In order to provide the best support for water cooling solutions, GIGABYTE has equipped its X99/Z170 motherboards with an additional water pump power header. This allows the user to have full control over two water pumps or fans. An additional benefit of these headers with GIGABYTE’s motherboards is the option to choose between voltage calibration or PWM modes.

PURE SPEED, MORE POWER
Exclusively on GIGABYTE Powered Motherboards
The Intel® USB 3.1 controller utilizes four PCIe Gen2 Lanes, offering up to 20 Gb/s total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

NVMe PCIe Gen3 x4 U.2 Onboard
NVMe Performance for PCIe SSDs
The new Intel 750 series SSDs offer an incredible increase in performance over SATA drives. Using the NVMe protocol which takes advantage of the fast bandwidth of PCIe Gen3 x4 lanes (32 Gb/s), the drives are a clear advantage for users looking to boot their OS faster, load their games in a flash and access large files without waiting. By implementing the U.2 port onboard to support the 2.5" Intel 750 Series drive, GIGABYTE ensures that the users can benefit from the best performance.

Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)
GIGABYTE’s M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

Genuine All Digital Power Design
GIGABYTE X99 series motherboards use an all digital CPU power design from International Rectifier® which includes both 4th Generation digital PWM Controllers and industry-leading 3rd Generation PowIRstage® controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new Intel® Core™ i7 Extreme Edition CPUs.

IR Digital PWM & IR PowIRstage® ICs
This new generation of IR® digital power controllers and PowIRstage® ICs feature Isense technology, which provide more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowIRstage® ICs, preventing the overheating of each individual PowIRstage®, resulting in longer lifespan and better reliability.

Server Level Chokes by Cooper Bussmann
GIGABYTE X99 series motherboards feature Server Level Cooper Bussmann Chokes.
- Server level reliability
- High current capacity
- New design reduces heat created by power loss and provides efficient power delivery to CPU VRM area.

Long Lifespan Durable Black™ Solid Caps
GIGABYTE X99 series motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. This provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability, with ultra-low ESR no matter how high the CPU loading.
