InLine 36219I computer cooling system part/accessory

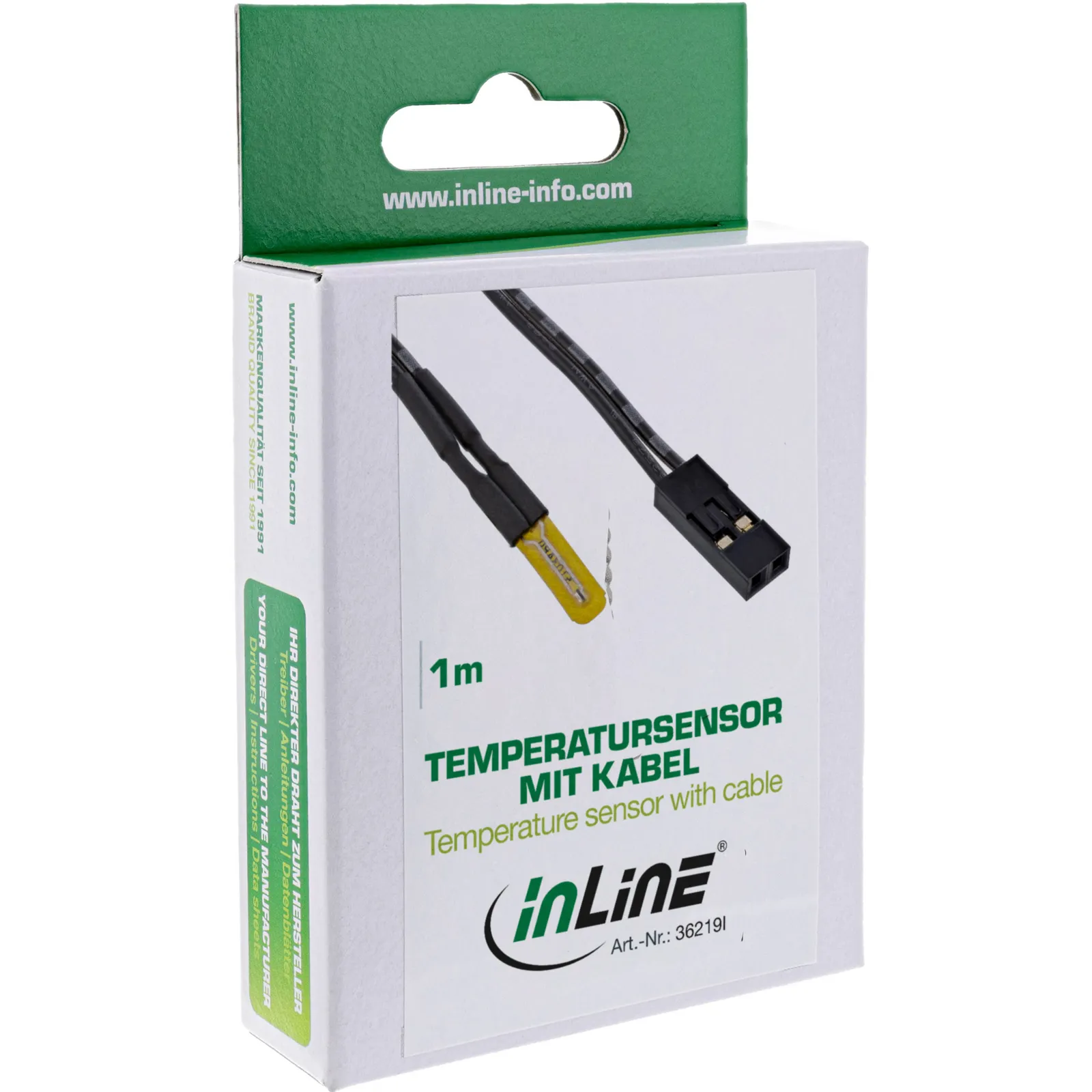

InLine Temperature Sensor / Probe universal 2 Pin with Cable 1m, 1 mm, 1000 mm, 7 g, 66 mm, 105 mm, 21 mm
Width: 1 mmDepth: 1000 mmPackage volume: 200 cm³Package depth: 105 mm
Specifikacije
- Width
- 1 mm
- Depth
- 1000 mm
Opis
Easy temperature monitoring via 2-pin connection
Direct front panel connection:2-pin header connector enables quick integration without additional hardware.
Wide measurement range:-50 to +90 °C reliably covers cold to warm zones.
Precise evaluation:NTC characteristic with 10 kΩ at 25 °C simplifies integration into common measurement circuits.
Flexible placement:1 m cable allows the measuring point to be positioned optimally in the enclosure or on the device.
The temperature sensor with NTC resistor provides reliable readings for monitoring enclosures, devices, or environments. Via the 2-pin header connector it is quickly connected to front panels or control boards, while the 1 m cable allows free choice of the measuring point.
In professional IT environments, in on-site installations and in service use, it supports continuous temperature control in existing infrastructures of companies and public institutions.
Connection:2-pin header connector
Cable length:1 m
Sensor principle:NTC
Measurement range:-50 to +90 °C
Resistance at 25 °C:10 kΩ
Direct front panel connection:2-pin header connector enables quick integration without additional hardware.
Wide measurement range:-50 to +90 °C reliably covers cold to warm zones.
Precise evaluation:NTC characteristic with 10 kΩ at 25 °C simplifies integration into common measurement circuits.
Flexible placement:1 m cable allows the measuring point to be positioned optimally in the enclosure or on the device.
The temperature sensor with NTC resistor provides reliable readings for monitoring enclosures, devices, or environments. Via the 2-pin header connector it is quickly connected to front panels or control boards, while the 1 m cable allows free choice of the measuring point.
In professional IT environments, in on-site installations and in service use, it supports continuous temperature control in existing infrastructures of companies and public institutions.
Connection:2-pin header connector
Cable length:1 m
Sensor principle:NTC
Measurement range:-50 to +90 °C
Resistance at 25 °C:10 kΩ
