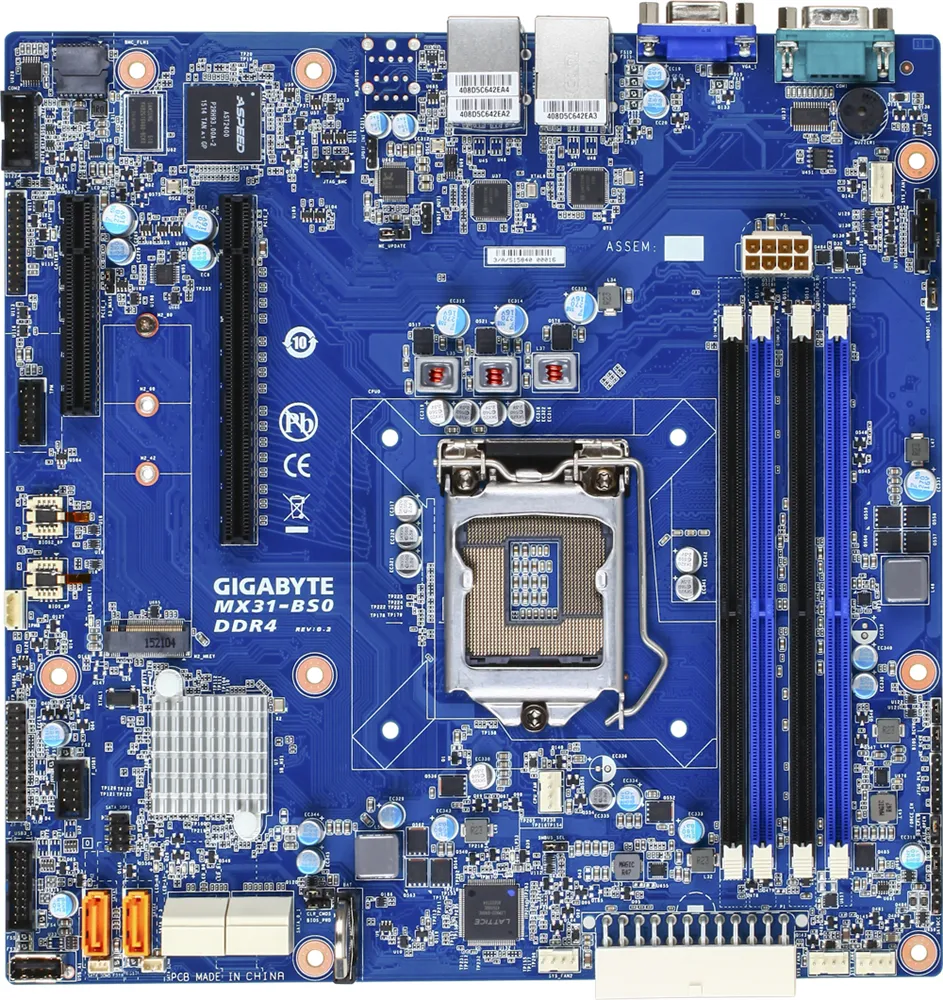

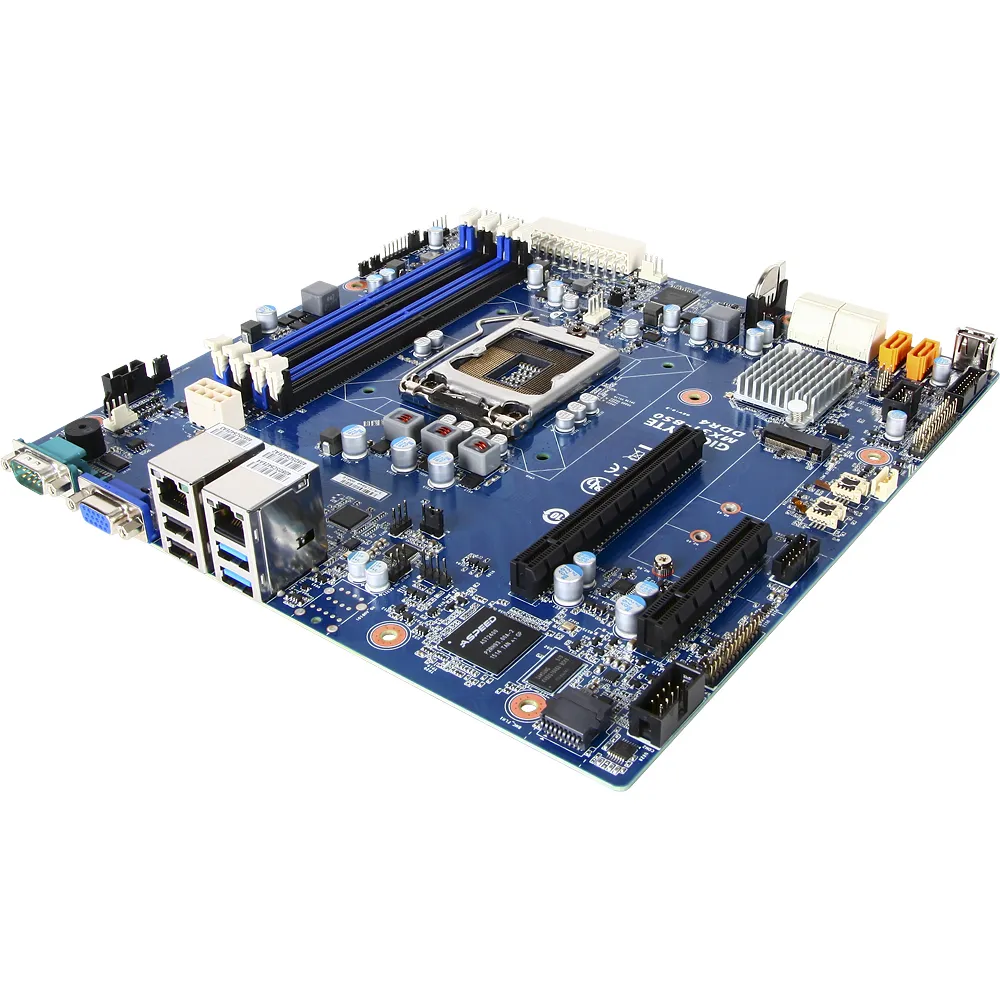

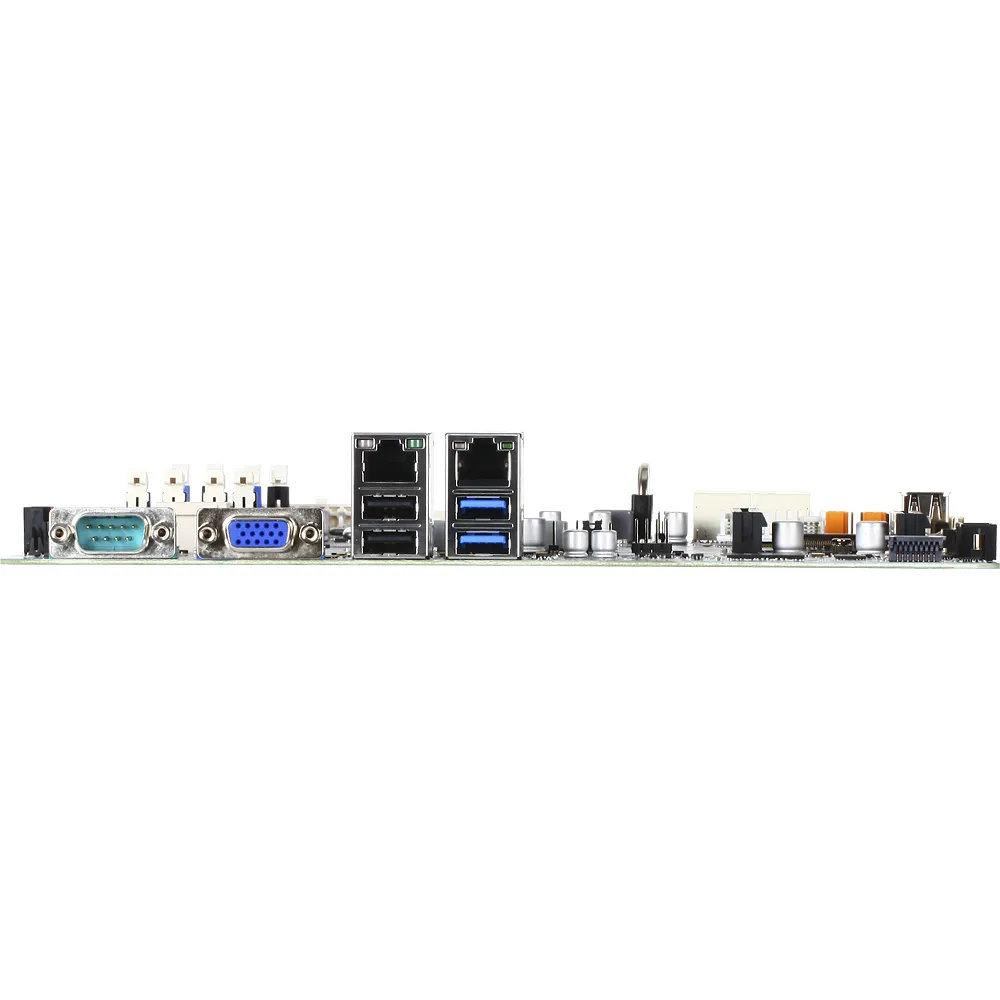

GIGABYTE MX31-BS0 (rev. 1.1)
GIGABYTE MX31-BS0 (rev. 1.1), Intel, LGA 1151 (Socket H4), E3-1200, DDR4-SDRAM, Dual-channel, 1.2 V
Processor manufacturer: IntelDiscrete graphics support: YesOperating temperature (T-T): 10 - 35 °CMotherboard form factor: micro ATXSerial ports quantity: 1PCI Express x8 (Gen 3.x) slots: 1
Specifikacije
- Processor manufacturer
- Intel
- Discrete graphics support
- Yes
- Operating temperature (T-T)
- 10 - 35 °C
- Motherboard form factor
- micro ATX
- Serial ports quantity
- 1
Opis
Supports the Intel Xeon E3-1200 V5 Processors
Formerly known as Greenlow, this new generation of single socket server and workstation processors is based on the 14nm process technology but comes with the new Skylake microarchitecture.
Among the main features of this new product family is the adoption of the DDR4 memory technology within the Xeon E3 line of processors, which brings a significant memory speed and capacity boost over the previous generation (up to 64GB at 2133MHz). The other big new feature is the increase of the number and speed of PCIe lanes available from 8 Gen2 lanes to up to 20 Gen3 lanes, which allows much wider board configuration possibilities.
M.2 Slot Onboard
The MX31-BS0 comes equipped with an onboard M.2 slot, providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gb/s) storage devices.
The M.2 slot of this motherboard supports cards up to 80mm length and 20mm width, and the following specifications:
M.2 PCIe SSD Cards up to 10Gb/s
M.2 SATA SSD Cards up to 6Gb/s
DDR4 Memory Support
The Intel Xeon E3-1200 V5 product family is the first generation of Xeon E3 processors to support the DDR4 memory technology. Compared to DDR3, this new generation brings:
Formerly known as Greenlow, this new generation of single socket server and workstation processors is based on the 14nm process technology but comes with the new Skylake microarchitecture.
Among the main features of this new product family is the adoption of the DDR4 memory technology within the Xeon E3 line of processors, which brings a significant memory speed and capacity boost over the previous generation (up to 64GB at 2133MHz). The other big new feature is the increase of the number and speed of PCIe lanes available from 8 Gen2 lanes to up to 20 Gen3 lanes, which allows much wider board configuration possibilities.
M.2 Slot Onboard
The MX31-BS0 comes equipped with an onboard M.2 slot, providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gb/s) storage devices.
The M.2 slot of this motherboard supports cards up to 80mm length and 20mm width, and the following specifications:
M.2 PCIe SSD Cards up to 10Gb/s
M.2 SATA SSD Cards up to 6Gb/s
DDR4 Memory Support
The Intel Xeon E3-1200 V5 product family is the first generation of Xeon E3 processors to support the DDR4 memory technology. Compared to DDR3, this new generation brings:
