StarTech.com POEINJ1GI PoE adapter
StarTech.com Industrial 1 Port Gigabit PoE+ Power over Ethernet Injector (30W) w/ Non-Standard PoE Boost (60W) and Redundant Power, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, 100 m, Fault, PoE, Power, 48 V, 60 W
Operating temperature (T-T): 0 - 60 °CLED indicators: Fault, PoE, PowerWall mountable: YesNetworking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3uMaximum operating distance: 100 mOperating temperature (T-T): -40 - 85 °F
Specifikacije
- Operating temperature (T-T)
- 0 - 60 °C
- LED indicators
- Fault, PoE, Power
- Wall mountable
- Yes
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
- Maximum operating distance
- 100 m
Opis
The POEINJ1GI Industrial Gigabit PoE+ Injector provides power and data connectivity to a Gigabit PoE-compliant device over standard Ethernet cabling at distances of up to 330ft (100m), and offers redundant, wide-range DC power inputs. This injector allows you to easily connect a PoE-powered device (PD) to a non-PoE LAN switch, avoiding the cost of upgrading your switch to a PoE-enabled model.

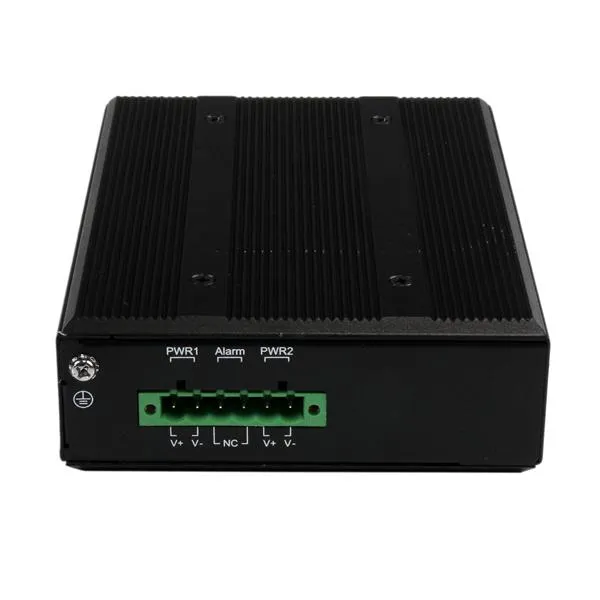

Providing seamless power failover in the event of power dips or failures, the injector features redundant 20-57V DC (nominal 24/48V DC) terminal block power inputs. The internal DC-DC converter provides the PoE injector with high voltage output from a low voltage input (<24V DC). When used with multiple power sources, the injector also supports alarm relay contacts, which can be wired to your existing alarm circuit to give you instant notice when a power disruption occurs.
Fully compliant with IEEE 802.3at / 802.3af, the injector provides a 10/100/1000Mbps port with support for up to 30 Watt max output, and up to 60 Watts output for non-standard PoE devices.
To ensure dependable performance in harsh environments this power over Ethernet injector features a rugged, IP-30 case design with flexible DIN rail or wall-mountable installation options.
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Maintain device operation during power disruptions with redundant power inputs

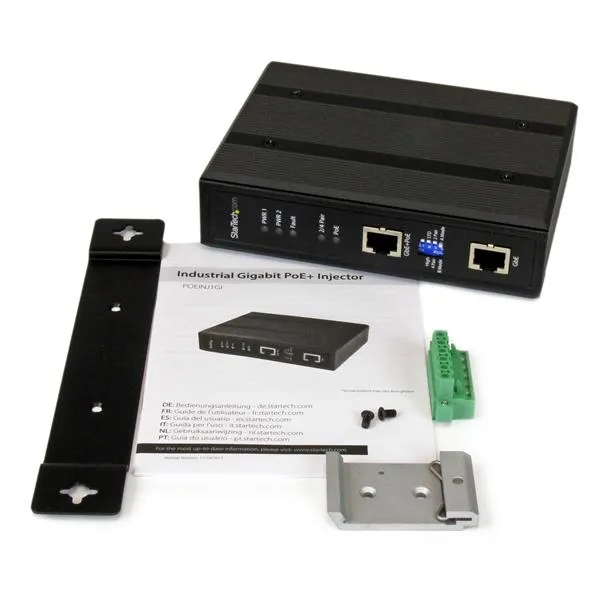

- Versatile installation options with included DIN rail and wall-mount brackets
- Operate under harsh industrial conditions with an IP-30 rated, rugged housing
Providing seamless power failover in the event of power dips or failures, the injector features redundant 20-57V DC (nominal 24/48V DC) terminal block power inputs. The internal DC-DC converter provides the PoE injector with high voltage output from a low voltage input (<24V DC). When used with multiple power sources, the injector also supports alarm relay contacts, which can be wired to your existing alarm circuit to give you instant notice when a power disruption occurs.
Fully compliant with IEEE 802.3at / 802.3af, the injector provides a 10/100/1000Mbps port with support for up to 30 Watt max output, and up to 60 Watts output for non-standard PoE devices.
To ensure dependable performance in harsh environments this power over Ethernet injector features a rugged, IP-30 case design with flexible DIN rail or wall-mountable installation options.
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Maintain device operation during power disruptions with redundant power inputs
- Versatile installation options with included DIN rail and wall-mount brackets
- Operate under harsh industrial conditions with an IP-30 rated, rugged housing
