1 / 5GIGABYTE · Matične ploče

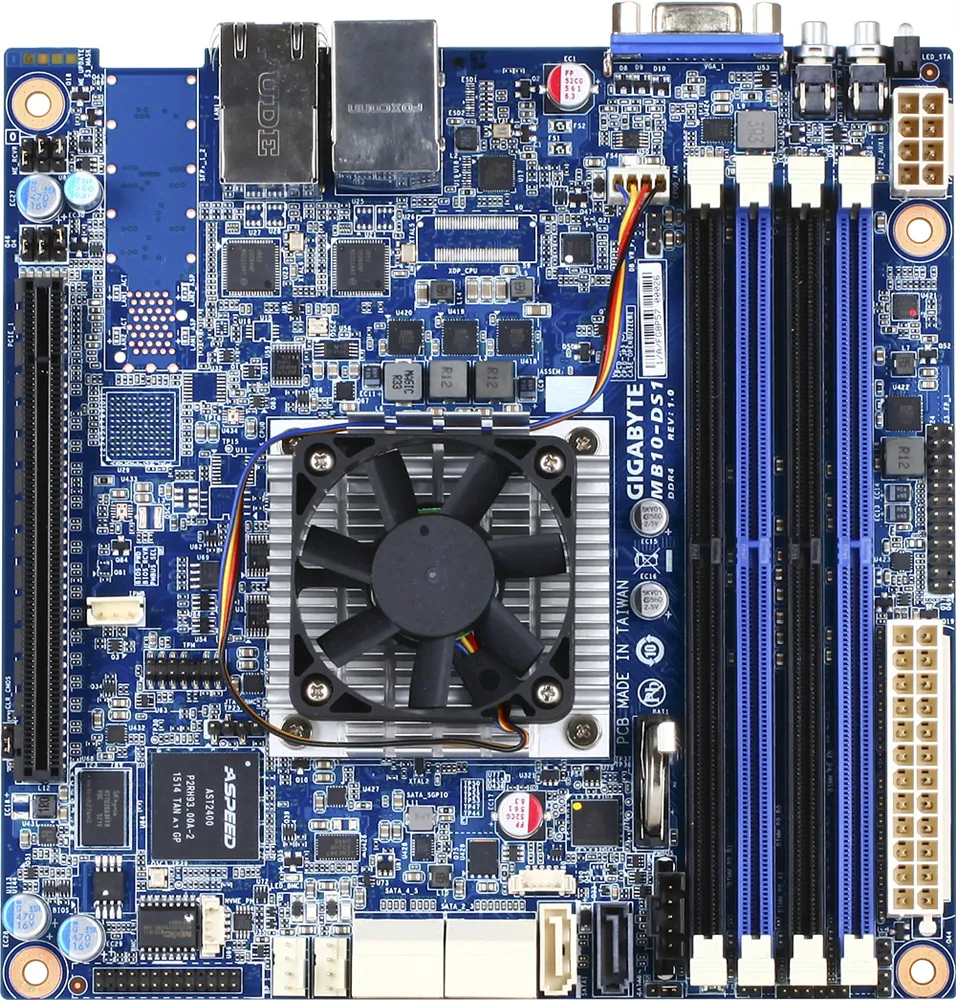

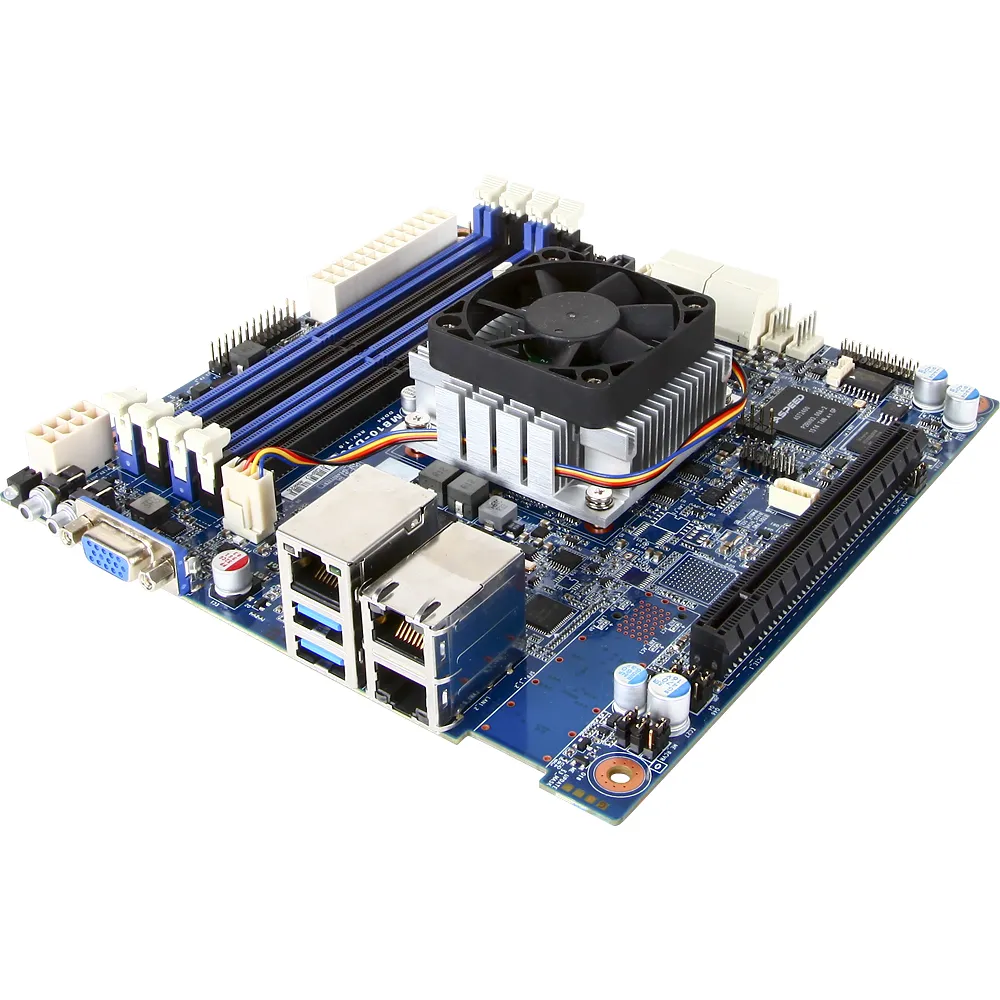

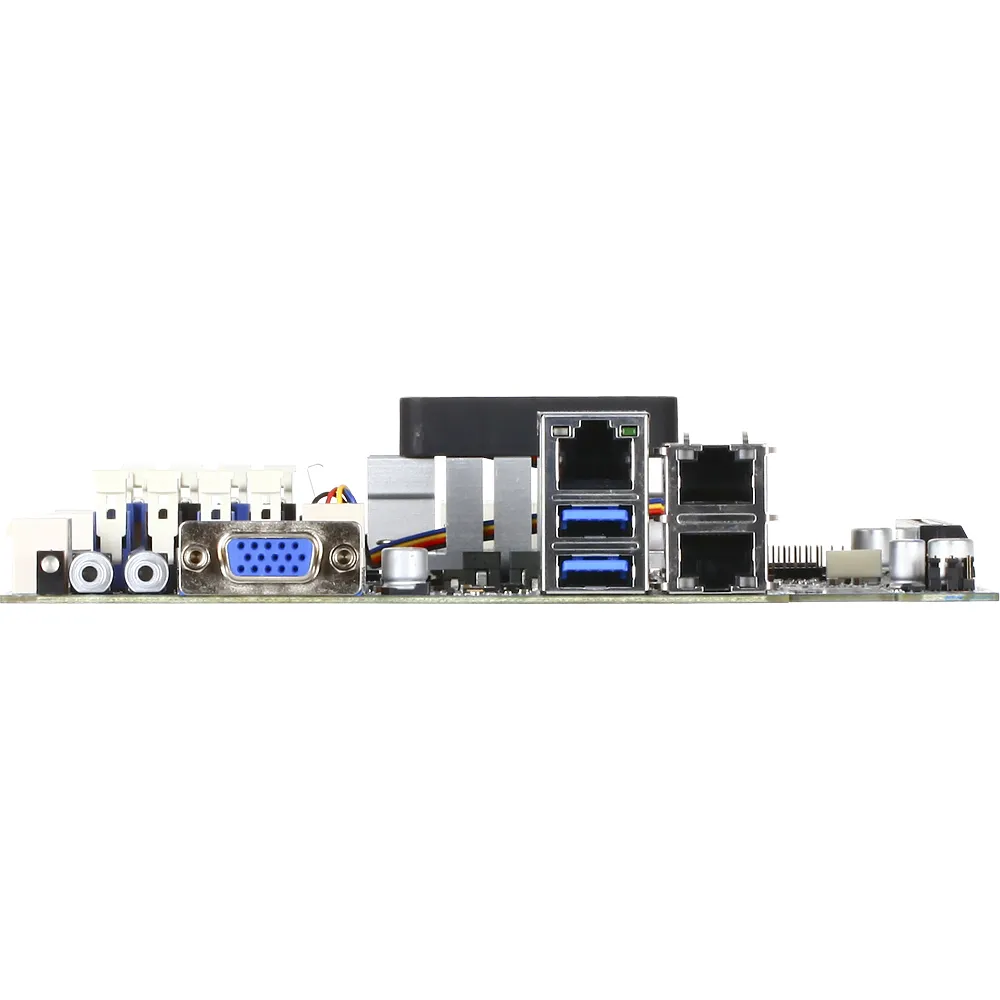

GIGABYTE MB10-DS1 motherboard
GIGABYTE MB10-DS1, Intel, BGA 1667, D-1500, 14 nm, Dual, Broadwell
Processor manufacturer: IntelIntel® AES New Instructions (Intel® AES-NI): YesIntel® Virtualization Technology (Intel® VT): VT-d, VT-xIntel Trusted Execution Technology: YesLithography: 14 nmPCI Express slots quantity: 1
Specifikacije
- Processor manufacturer
- Intel
- Intel® AES New Instructions (Intel® AES-NI)
- Yes
- Intel® Virtualization Technology (Intel® VT)
- VT-d, VT-x
- Intel Trusted Execution Technology
- Yes
- Lithography
- 14 nm
Opis
MB10-DS1

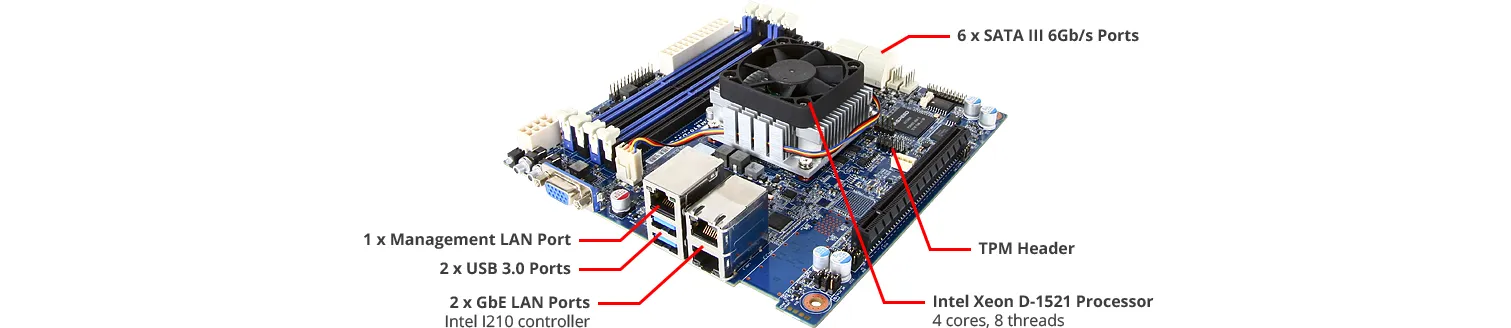

- Mini-ITX form factor
- Intel® Xeon® D-1521 processor
- 4 x RDIMM/UDIMM slots, DDR4 2133MHz
- 2 x GbE LAN ports (Intel® I210)
- 6 x SATA III 6Gb/s
- Aspeed® AST2400 remote management controller
Built With the Intel Xeon D-1521 SoC Processor
Based on the Broadwell microarchitecture, the Intel Xeon D are Server-on-Chip processors based on the 14nm process.
Designed for high density and scale-out server infrastructures, these processors focus on high power efficiency while maintaining datacenter grade features, such as large storage and memory platforms. Through this density and computing power, they aim at lowering the TCO of enterprise & public clouds, storage, and network applications.
DDR4 Memory Support
The Intel Xeon D product family supports the DDR4 memory technology. Compared to DDR3, this new generation brings:
+50% Bandwidth Performance
-35% Power Consumption @ 2DPC
-50% Power Consumption @ 3DPC
Easy BIOS Update
Because updating your BIOS to a newer version can be a troublesome experience, GIGABYTE has developed this integrated function (no additional software to install) that lets you update the BIOS of your server / workstation motherboard(s):
Without having to install CPUs, memory, drives, operating system, etc.
Without having to power on the system (but a power supply must be connected)
One board at a time via our IPMI 2.0 web interface
Multiple boards simultaneously via command line
Remote System Management
This motherboard is equipped with an onboard Aspeed AST2400 controller, providing comprehensive remote system monitoring with a whole set of management features, such as:
Remote Boot & Reset
Remote Image Mounting
Full Control Over Network, Users, Services, etc.
Complete System Monitoring & Diagnostics
The Best Components Only
All IR Power Design
The CPU and memory power delivery of our motherboards is ensured by industry-leading IR Digital PWM and IR PowIRstage IC controllers. These components guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance.
OS-CON Capacitors
With a service life of a minimum of 50’000 hours, our server motherboards are built with ultra long lasting components for the highest reliability possible.
High End Ferrite Core Chokes
The top quality chokes we install on our server motherboards also contribute to an ultra stable power delivery to the CPU and the memory.
- Mini-ITX form factor
- Intel® Xeon® D-1521 processor
- 4 x RDIMM/UDIMM slots, DDR4 2133MHz
- 2 x GbE LAN ports (Intel® I210)
- 6 x SATA III 6Gb/s
- Aspeed® AST2400 remote management controller
Built With the Intel Xeon D-1521 SoC Processor
Based on the Broadwell microarchitecture, the Intel Xeon D are Server-on-Chip processors based on the 14nm process.
Designed for high density and scale-out server infrastructures, these processors focus on high power efficiency while maintaining datacenter grade features, such as large storage and memory platforms. Through this density and computing power, they aim at lowering the TCO of enterprise & public clouds, storage, and network applications.
DDR4 Memory Support
The Intel Xeon D product family supports the DDR4 memory technology. Compared to DDR3, this new generation brings:
+50% Bandwidth Performance
-35% Power Consumption @ 2DPC
-50% Power Consumption @ 3DPC
Easy BIOS Update
Because updating your BIOS to a newer version can be a troublesome experience, GIGABYTE has developed this integrated function (no additional software to install) that lets you update the BIOS of your server / workstation motherboard(s):
Without having to install CPUs, memory, drives, operating system, etc.
Without having to power on the system (but a power supply must be connected)
One board at a time via our IPMI 2.0 web interface
Multiple boards simultaneously via command line
Remote System Management
This motherboard is equipped with an onboard Aspeed AST2400 controller, providing comprehensive remote system monitoring with a whole set of management features, such as:
Remote Boot & Reset
Remote Image Mounting
Full Control Over Network, Users, Services, etc.
Complete System Monitoring & Diagnostics
The Best Components Only
All IR Power Design
The CPU and memory power delivery of our motherboards is ensured by industry-leading IR Digital PWM and IR PowIRstage IC controllers. These components guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance.
OS-CON Capacitors
With a service life of a minimum of 50’000 hours, our server motherboards are built with ultra long lasting components for the highest reliability possible.
High End Ferrite Core Chokes
The top quality chokes we install on our server motherboards also contribute to an ultra stable power delivery to the CPU and the memory.
