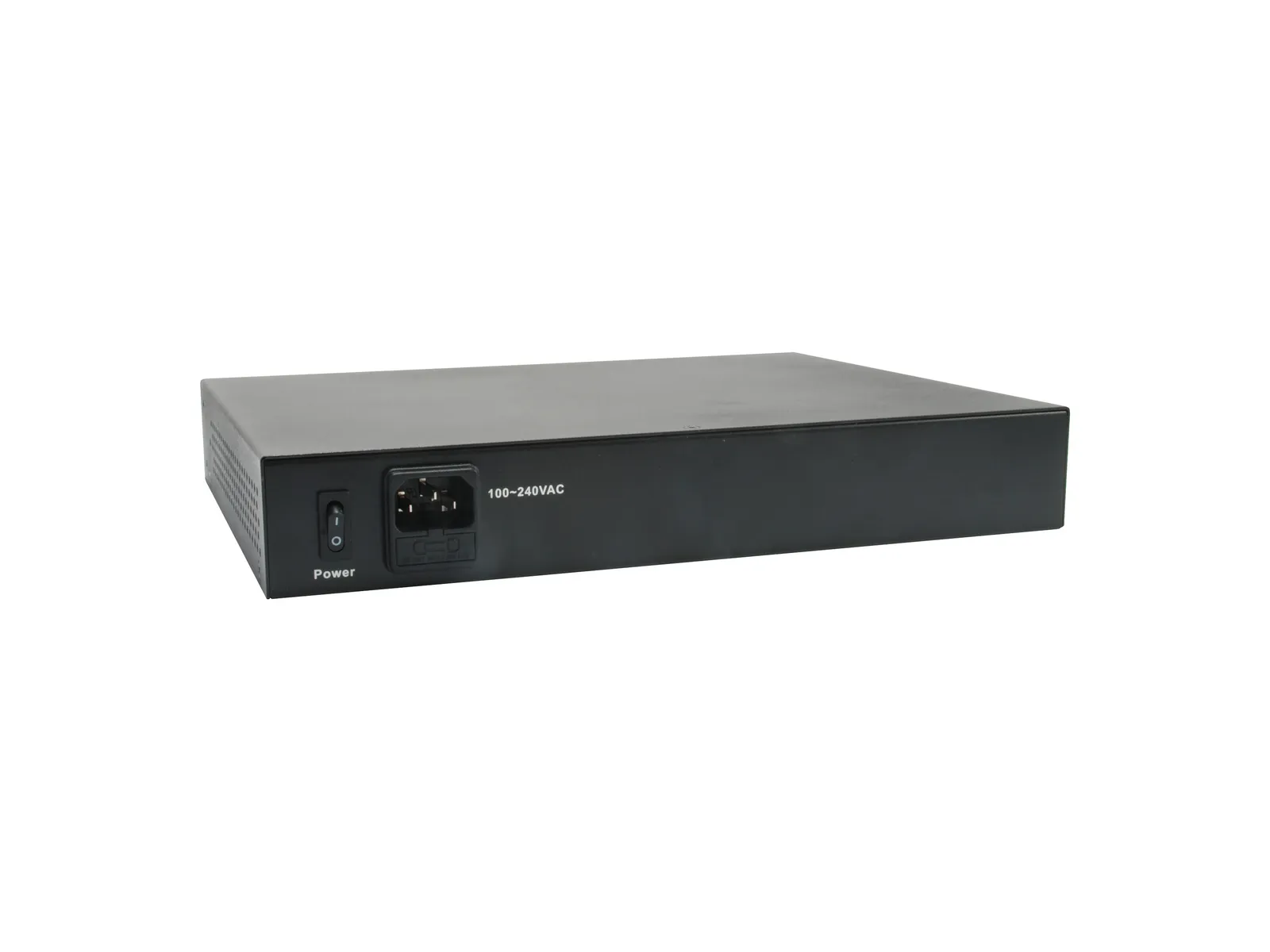

LevelOne GEP-1070 network switch

The LevelOne GEP-1070 is 10-port Gigabit Layer-2 Managed PoE+ Switch, is a standard Gigabit Ethernet switch that meets all IEEE IEEE 802.3/u/x/z/ab/af/at standards. The switch includes 8-Port 10/100/1000Mbps RJ-45 with PoE+ function and 2-Port Gigabit SFP for Fiber. It is an ideal solution for applications of wireless AP, IP phones, IP cameras, and IP HDMI TV-Wall of digital signage. It can be managed through Ethernet port using Web-based management, associated with SNMP agent. With the SNMP agent, the network administrator can manage the switch, configure and control in an efficient way. The overall network management is enhanced to meet the network efficiency and to accommodate high bandwidth applications.
In addition, the switch features comprehensive and useful functions such as DHCP Snooping (Including Option 82), QoS (Quality of Service), Spanning Tree, RSTP/MSTP, VLAN, Port Trunking, Port Security, MVR, SNMP/RMON, LLDP and IGMPv3 Snooping capability.
GEP-1070 supports the Power saving by reducing the power consumption. It could efficiently save the switch power with auto detecting the client idle and cable length to provide different power.

- 8 PoE-Plus Gigabit Ethernet ports and 2 Gigabit SFP slots
- Supports VLAN (tag-based, Q-in-Q)
- Supports 8K MAC address auto-learning and auto-aging
- IEEE 802.3ad LACP for auto port aggregation
- 9K jumbo frames to increase data transfer rates
- Total PoE power budget: 120W, up to 30W per port
