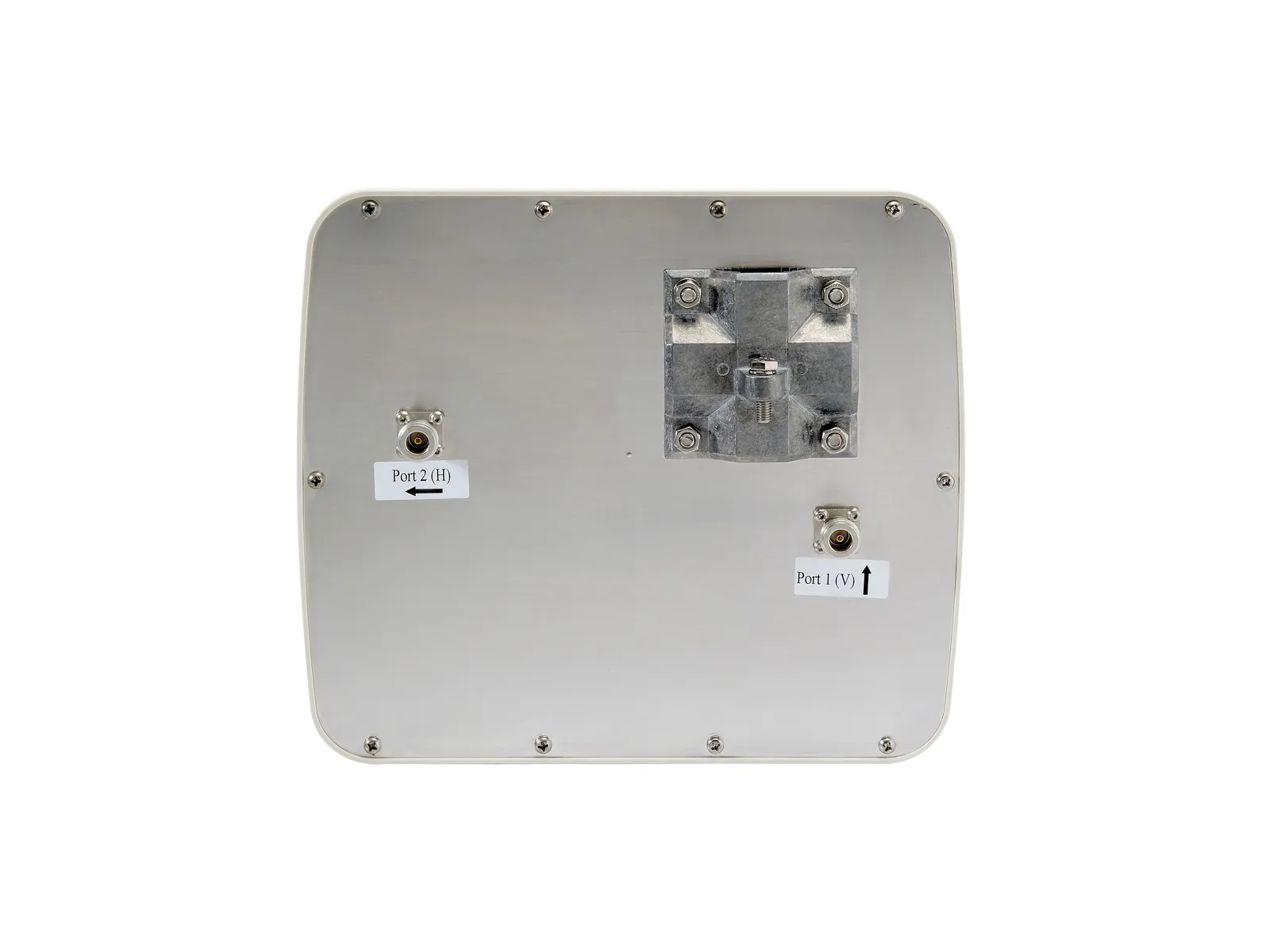

LevelOne WAN-9180 network antenna
LevelOne 18dBi 5GHz Directional Dual-Polarization Outdoor Panel Antenna, 18 dBi, 5.15 - 5.875 GHz, IEEE 802.11a, IEEE 802.11n, 50 Ω, 15°, 15°
Operating temperature (T-T): -40 - 80 °CHeight: 19 mmAntenna type: Directional antennaWidth: 256 mmDepth: 227 mmProduct colour: Grey
Specifikacije
- Operating temperature (T-T)
- -40 - 80 °C
- Height
- 19 mm
- Antenna type
- Directional antenna
- Width
- 256 mm
- Depth
- 227 mm
Opis

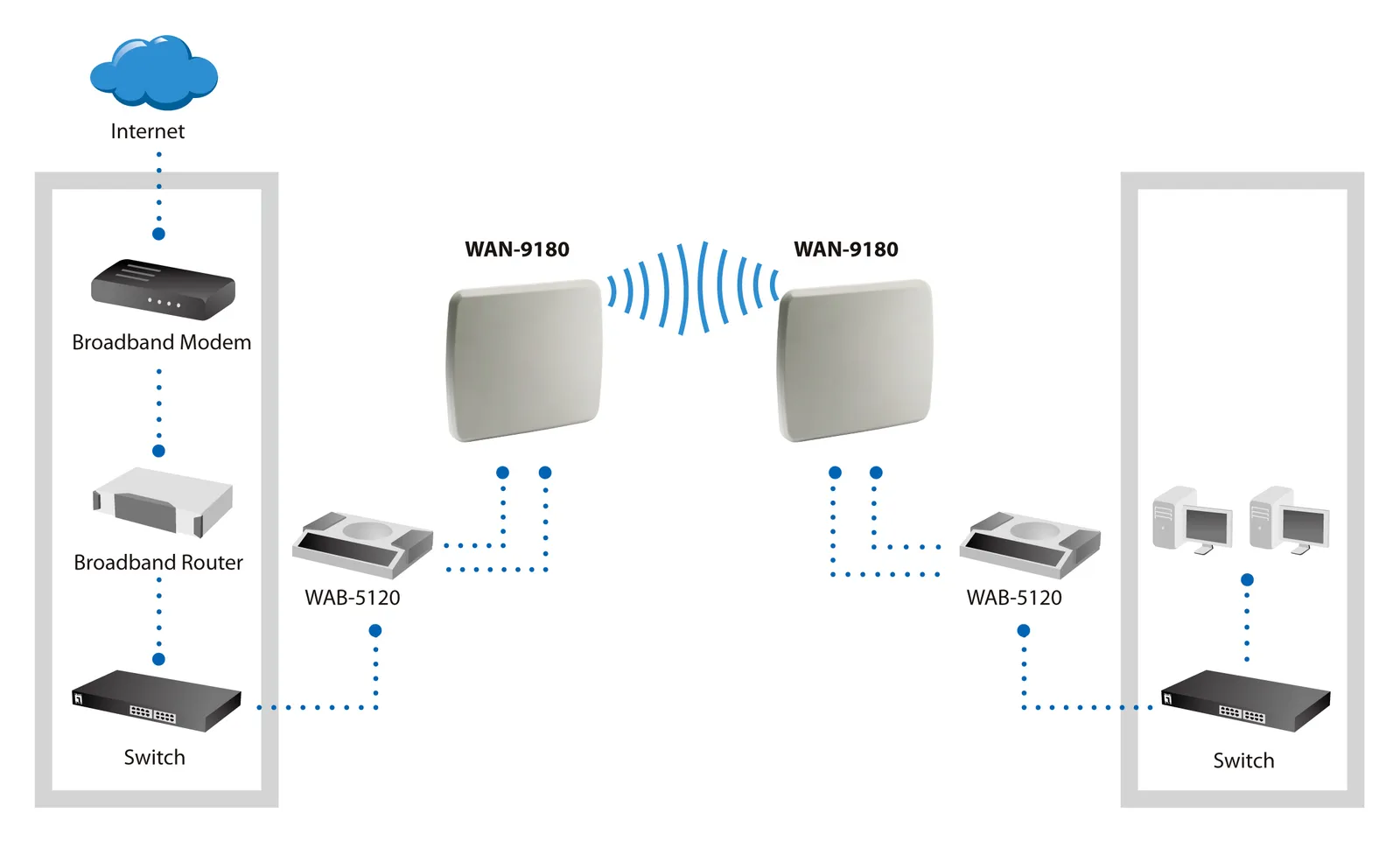

The LevelOne WAN-9180 18dBi Directional Dual-Polarization antenna is designed for outdoor wireless connections. With array pattern located at +45° and -45° polarization, you can improve signal strength in a crowded area with possible signal interference. It improves signal strength and coverage in 5GHz band, towards a concentrated enhanced direction.
This panel antenna is easy to mount and install on flat areas such as wall or window. Designed for outdoor elevated installation with high sustainability in strong wind. With IP-67 rating, it is completely protected against dust and humidity ingress.
- Operates in 5GHz band, according to IEEE 802.11a/n specifications
- Antenna diversity at 18dBi high gain performance
- Dual-Polarization to avoid interference
- Easy to install on the wall surface
- Wideband frequency performance enables future growth and increases flexibility
This panel antenna is easy to mount and install on flat areas such as wall or window. Designed for outdoor elevated installation with high sustainability in strong wind. With IP-67 rating, it is completely protected against dust and humidity ingress.
- Operates in 5GHz band, according to IEEE 802.11a/n specifications
- Antenna diversity at 18dBi high gain performance
- Dual-Polarization to avoid interference
- Easy to install on the wall surface
- Wideband frequency performance enables future growth and increases flexibility
