1 / 6Techly · Patch paneli i kabling

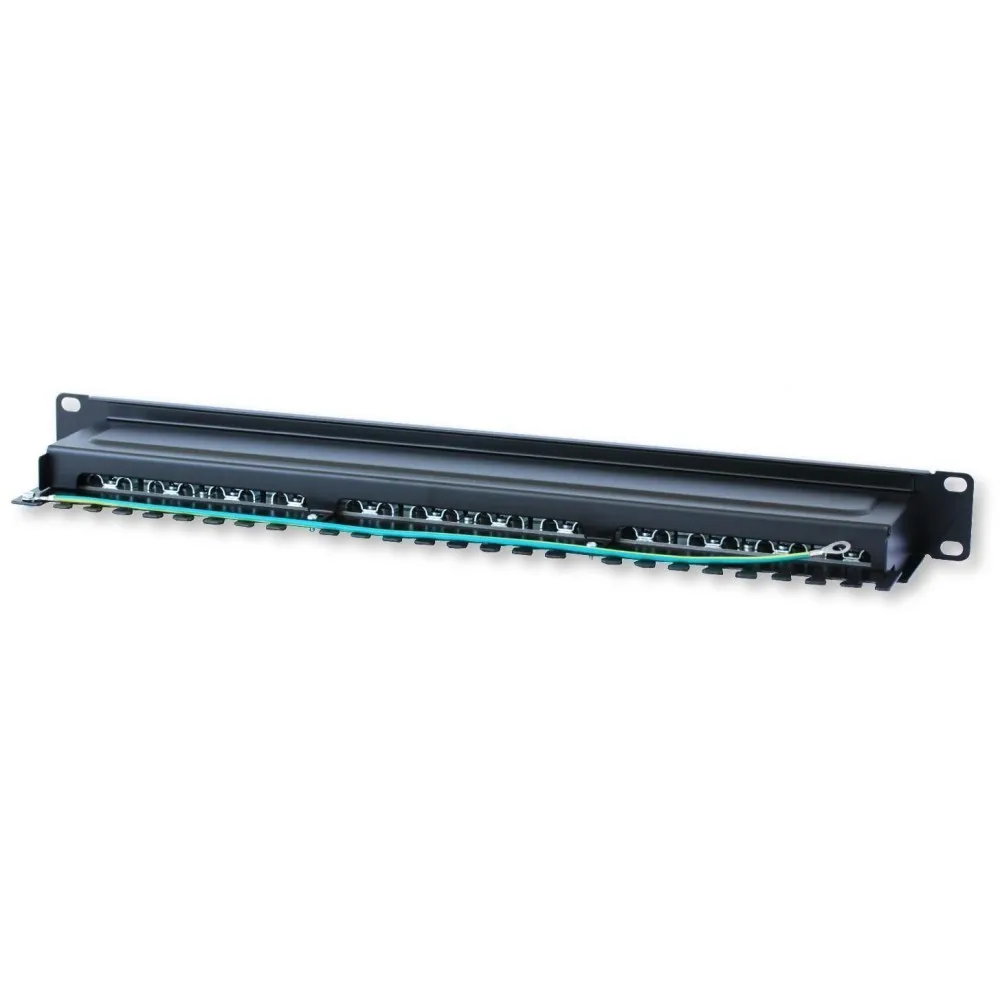

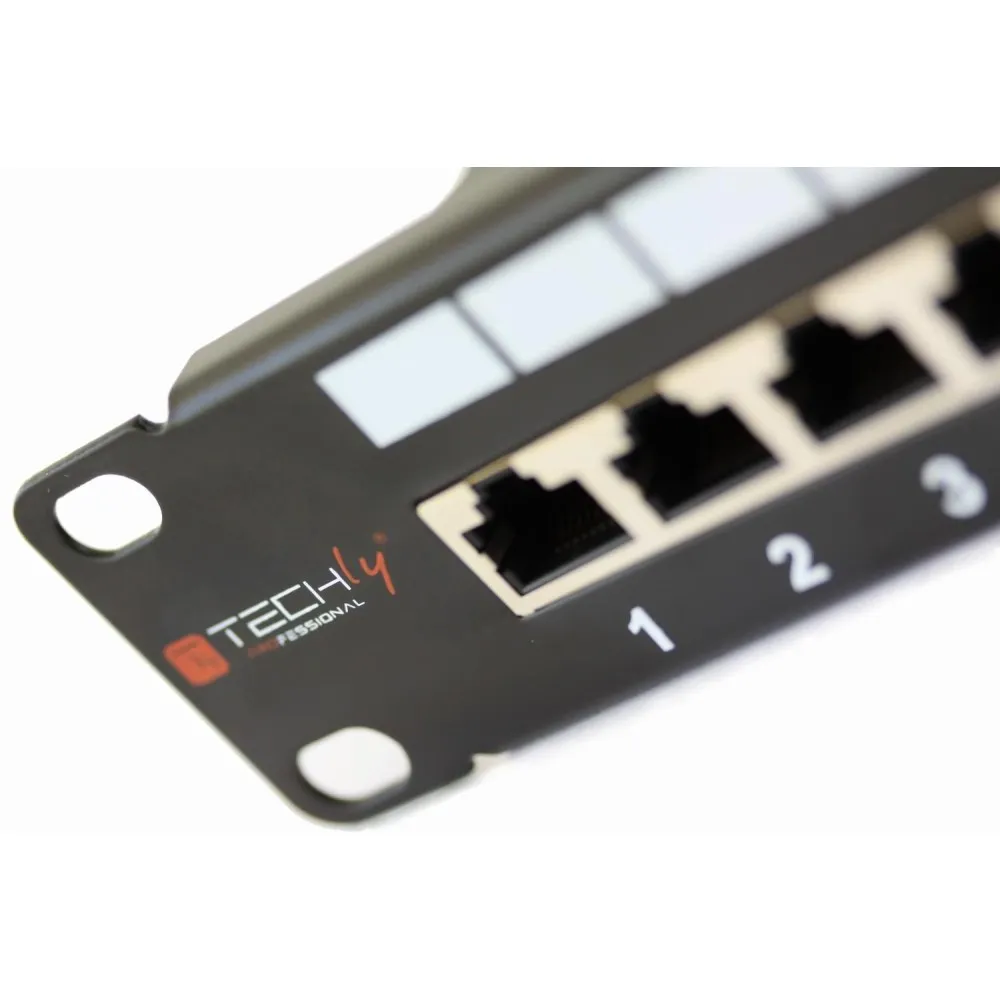

Techly 24 x RJ45 Cat.6A
Techly Patch panel STP 24 Ports RJ45 cat. 6A I-PP 24-RS-C6AT, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3u, 10/100/1000Base-T(X), 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, 10000 Mbit/s, RJ-45, Cat6a
Cable shielding: S/UTP (STP)Operating temperature (T-T): -40 - 68 °CMaximum data transfer rate: 10000 Mbit/sPorts quantity: 24Height: 44 mmConnector(s): RJ-45
Specifikacije
- Cable shielding
- S/UTP (STP)
- Operating temperature (T-T)
- -40 - 68 °C
- Maximum data transfer rate
- 10000 Mbit/s
- Ports quantity
- 24
- Height
- 44 mm
Opis
- STP patch panel 24-port RJ45 Cat. 6A;
- Compatible with the standard 19 "rackmount equipment, cabinets or wall mounting brackets;
- Meets TIA / EIA-568-B.2-10, IEEE802,3an for 10GBase-T;
- ISO specifications 11801, EN 50173-1 Class EA;
- Complies with CISPR / FCC Class A;
- Self-extinguishing degree: UL94-VO;
- Solid and reliable terminations for copper cabling;
- Supports rigid and flexible cable 22 to 26 AWG.
Standard
- IEEE 802.3 (10Base-T Ethernet);
- IEEE 802.3u (100Base-TX Fast Ethernet);
- IEEE 802.3ab (1000Base-T Gigabit Ethernet).
Dimensions
- Width: 482 mm;
- Height: 44 mm;
- Depth: 135 mm.
Certifications
- RoHS;
- WEEE.
Physical characteristics
- Dimensions: 482 mm (L) x 44 mm (H) x 135 mm (D);
- Horizontal distance between left and right mounting holes: 465 mm;
- The vertical distance between the mounting holes in the top and bottom: 31.8 mm;
- Operating temperature: -40 - 68 °C.
Package Contents
- Patch Panel;
- 4 mounting screws;
- Quick Install Guide;
- Nylon Ties.
- Compatible with the standard 19 "rackmount equipment, cabinets or wall mounting brackets;
- Meets TIA / EIA-568-B.2-10, IEEE802,3an for 10GBase-T;
- ISO specifications 11801, EN 50173-1 Class EA;
- Complies with CISPR / FCC Class A;
- Self-extinguishing degree: UL94-VO;
- Solid and reliable terminations for copper cabling;
- Supports rigid and flexible cable 22 to 26 AWG.
Standard
- IEEE 802.3 (10Base-T Ethernet);
- IEEE 802.3u (100Base-TX Fast Ethernet);
- IEEE 802.3ab (1000Base-T Gigabit Ethernet).
Dimensions
- Width: 482 mm;
- Height: 44 mm;
- Depth: 135 mm.
Certifications
- RoHS;
- WEEE.
Physical characteristics
- Dimensions: 482 mm (L) x 44 mm (H) x 135 mm (D);
- Horizontal distance between left and right mounting holes: 465 mm;
- The vertical distance between the mounting holes in the top and bottom: 31.8 mm;
- Operating temperature: -40 - 68 °C.
Package Contents
- Patch Panel;
- 4 mounting screws;
- Quick Install Guide;
- Nylon Ties.
